WISEDENT - Dental LED Curing Light High Power 4 Modes Two Light Guide Option BR-615
Our engineers and technicians have deep insight into the new technological developments. So far, we have been adopting the upgraded technologies maturely. This dental LED curing light is popular in the application field(s) of Dental Equipment Surgical Handpiece Dental Saw Cutting Direction.
The LED light cure emits a certain wavelength of light that is effective for dental restoration materials, so that dental restoration materials can be quickly cured under the action of light energy, achieving ideal treatment effects.
The WISEDENT BR-615/BR-615PRO High Power Dental LED Curing Light offers 4 versatile modes, 3200mW/cm² intensity, and a 385nm–515nm wavelength spectrum for efficient curing. Lightweight, ergonomic, and CE-certified, it ensures precision and reliability, backed by 24/7 support—perfect for modern dental workflows.
| Place of Origin: | Guangdong, China | Brand Name: | None |
| Model Number: | BR-165/BR-615pro | Power Source: | Electric |
| Warranty: | 1-year warranty | After-sale Service: | Online technical support |
| Material: | Metal, Metal | Shelf Life: | 3 years |
| Quality Certification: | CE | Instrument classification: | Class II |
| Safety standard: | GB15979-2002 | Type: | Light cure |
| Input: | 100-240V～ 50/60Hz 0.4A Max. | Overall assembly dimensions: | ∅ 18.2 mm × L198 mm |
Output: | 5V 1A | Overall assembly weight: | 110 g |
Fuse: | T1A250V | Battery model: | 18500 3.7V |
| Light guide : | Two options |
1.Product Features and Advantages
▶High-Intensity LED Light:Emits light at 385nm–515nm for rapid curing with minimal heat, protecting surrounding tissues.

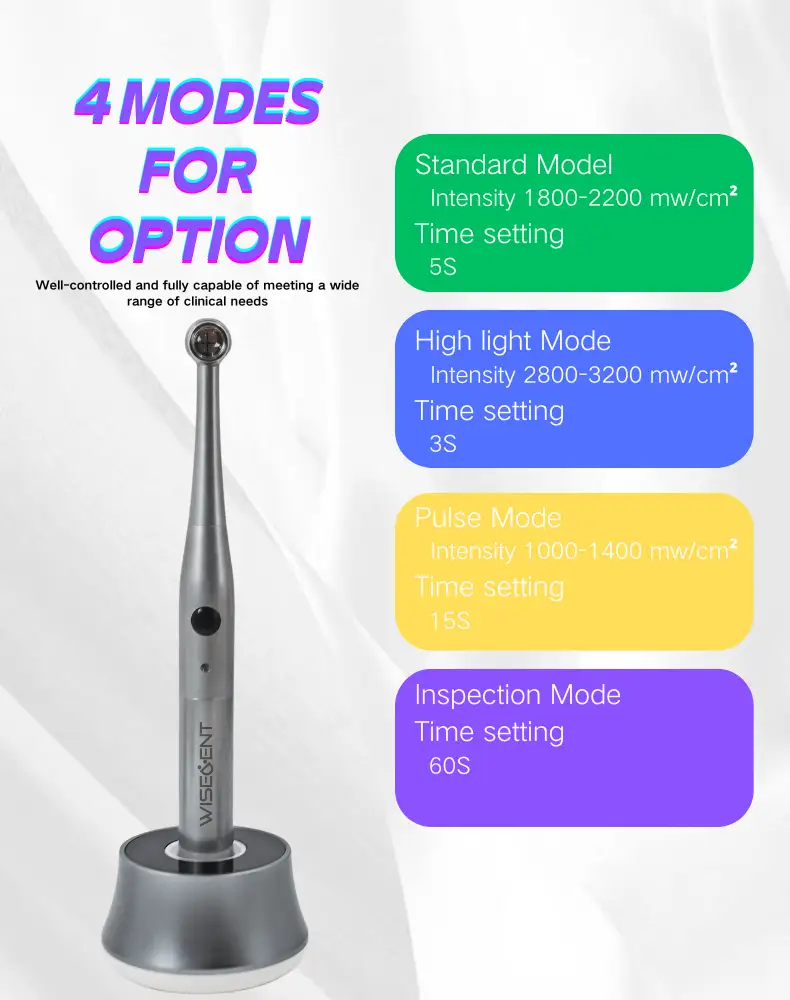

▶Four Adjustable Modes:Standard, Strong Light, Pulse, and Examination modes cater to diverse clinical scenarios.
▶Ergonomic & Portable Design:Lightweight and compact, with a cordless option featuring a long-lasting battery for reduced charging needs.
▶Energy-Efficient & Low-Noise:Consumes less power, generates less heat, and operates quietly to enhance patient comfort.
▶Durable & Reliable:Rigorous testing ensures safety; LED lifespan exceeds 5000 hours, eliminating bulb replacements.
▶Boosts Clinical Efficiency:Precision curing and portability improve workflow efficiency in dental settings.
2.Specification
Model Number | BR-615/BR-615PRO High Power Light Cure |
Battery capacity | 2000mAh |
Quality Certification | CE |
Wavelength | 385nm～515nm |
Fuse | T1A250V |
Max. intensity | 3200mW/cm² |
Mode | 4 modes |
Optical effective area | 78mm2 |
3.Product Details
The dental curing light features a compact and lightweight size, weighing only 114 grams. Its unique streamlined design conforms to ergonomics, making it easy to hold.The overall design is simple, meeting the professional and efficient requirements of detal equipment.
4.Working principle
The WISEDENT BR-615/BR-615PRO High Power Dental Curing Light operates by emitting high-intensity LED light in a specific wavelength range (385nm–515nm), which triggers the photopolymerization process of dental composite materials. This light energy activates the photoinitiators within the materials, causing them to harden and cure rapidly. The LED light cure device features four adjustable modes (Standard, Strong Light, Pulse, and Examination) to accommodate various clinical needs, ensuring efficient and precise curing for different dental restoration procedures. Its advanced LED technology provides consistent light output, enhancing the reliability and effectiveness of the curing process.
5.How to operate
Step 1: Pre - operation Preparation
Check the equipment for any damage and ensure the battery is charged (for the cordless model).Select the appropriate curing mode (Standard Mode, High Light Mode, Pulse Mode, or Inspection Mode) based on the dental restoration procedure and composite material requirements.
Step 2: Position the Dental LED Curing Light
Place the light guide tip close to the composite material in the patient's mouth, aligning it properly with the target area.
Step 3: Activate the Curing Light
Press the operation button to start the curing process. The LED light within the wavelength range of 385nm–515nm will be emitted to initiate the photopolymerization of the composite material.
Step 4: Maintain the Curing Time
Keep the LED light cure in position for the set time according to the selected mode.
Step 5: Post - operation Handling
Release the operation button to turn off the LED curing light. Clean and disinfect the light guide tip and the device body as per the manufacturer's instructions.Store the curing light in a proper place, away from dust, moisture, and extreme temperatures.
Q1: Will patients feel discomfort when using this dental curing light?
A1: Generally speaking, this LED curing lamp is designed with patient comfort in mind. The device emits minimal heat during operation, which helps prevent discomfort to the surrounding tissues in the patient's mouth. However, in some cases, if the patient is particularly sensitive, they might experience a slight warm sensation. But usually, patients can tolerate it well.
Q2: Is it difficult to switch between different curing modes on this device?
A2: Not complicated at all. This device is designed for easy operation. You can effortlessly switch between the four modes by simply pressing a button. The user - friendly interface allows for smooth adjustments during clinical procedures.
Q3: Can this LED light cure lamp be used in a busy dental clinic that sees multiple patients per day?
A3: Yes, this curing light is highly suitable for a busy dental clinic. Its lightweight and portable design make it easy to move between different treatment areas. Additionally, if you opt for the wireless version, it offers great convenience. Moreover, the battery is designed to last for an extended period, reducing the need for frequent charging during the day.
